As a leader in industrial heating solutions, J.Parker is proud to announce the successful shipment of 12 units of direct air heating systems, specifically tailored for lithium bicarbonate (LiHCO3) spray drying in the lithium battery raw material industry. This cutting-edge dual-stage heating system is engineered to deliver exceptional drying efficiency and precision, perfectly matching the high standards required for lithium battery raw material processing.

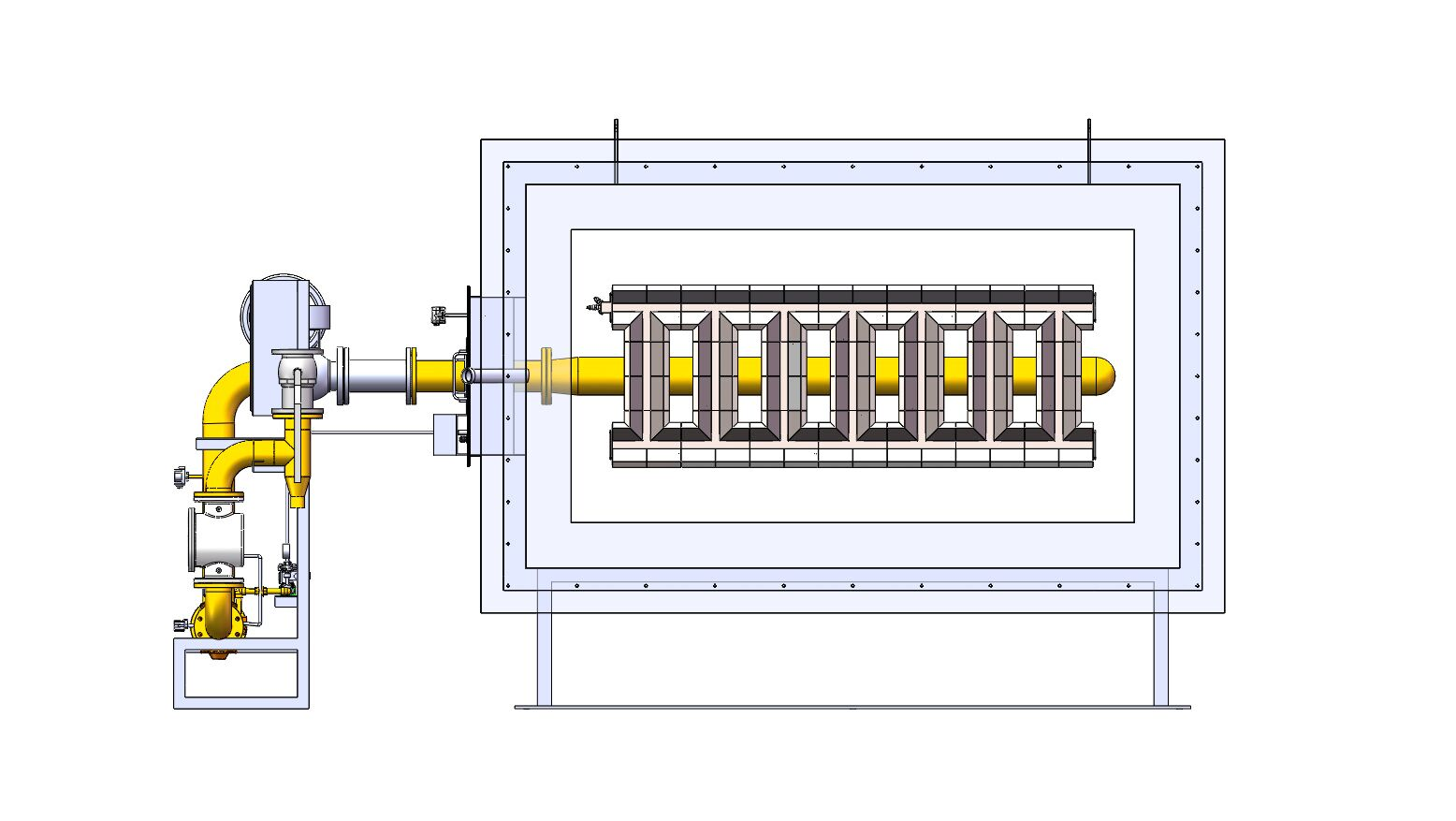

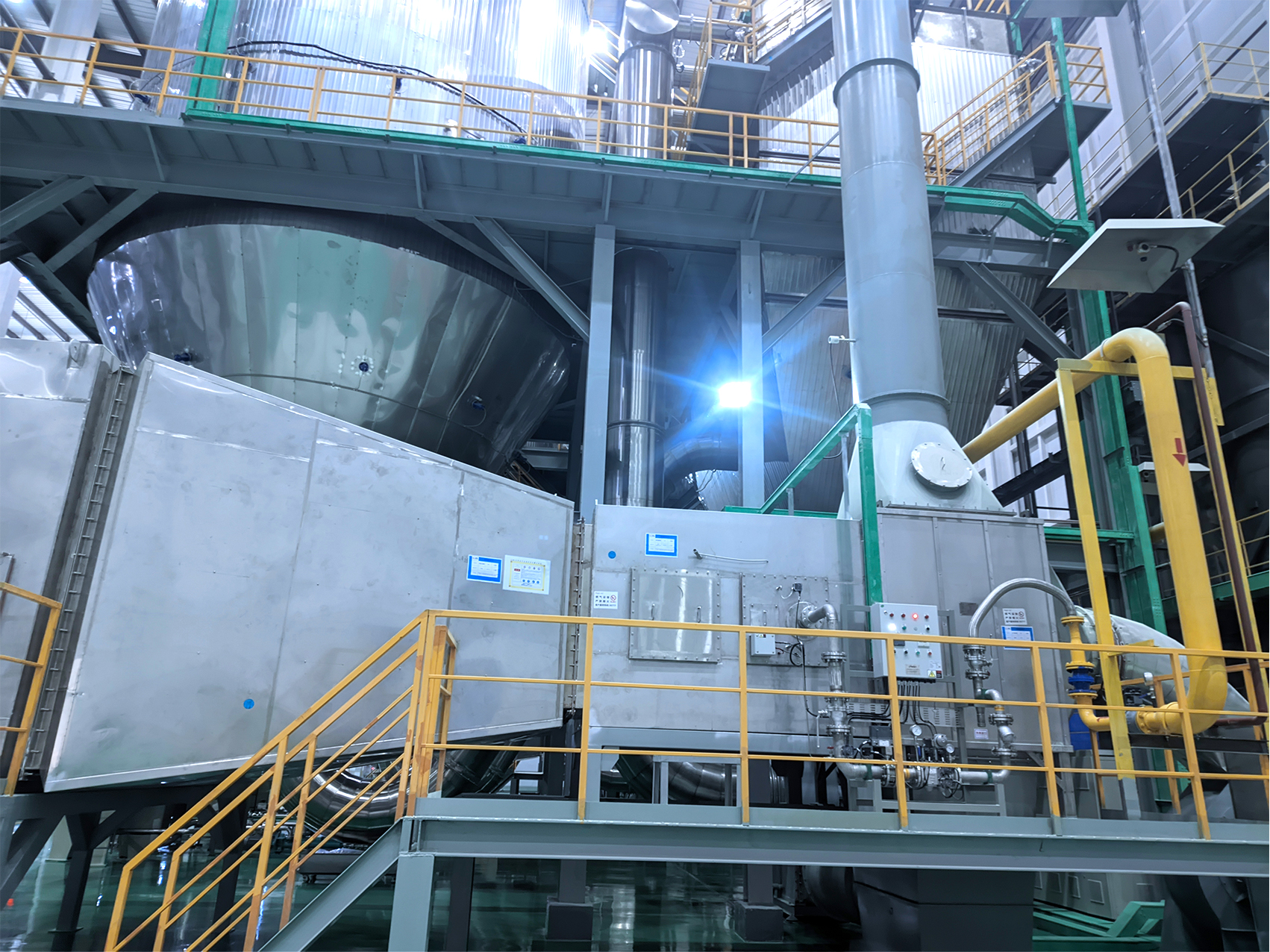

In the first stage of the drying process, 18 modules of HLPB burners work in tandem to generate a total heat output of 700×10⁴ Kcal/h, rapidly heating the inlet air to a stable 270℃. This high-temperature hot air is directly introduced into the spray dryer, enabling quick and uniform drying of the lithium bicarbonate material—laying a solid foundation for the subsequent processing stage. After the initial drying, the material is fully mixed with specific auxiliary materials and then transferred to the second-stage dryer. Here, an additional 28-module HLPB duct burner, with a combined heat capacity of 1100×10⁴ Kcal/h, further heats the air to 300℃, ensuring the lithium bicarbonate reaches the optimal dryness and purity required for lithium battery production.

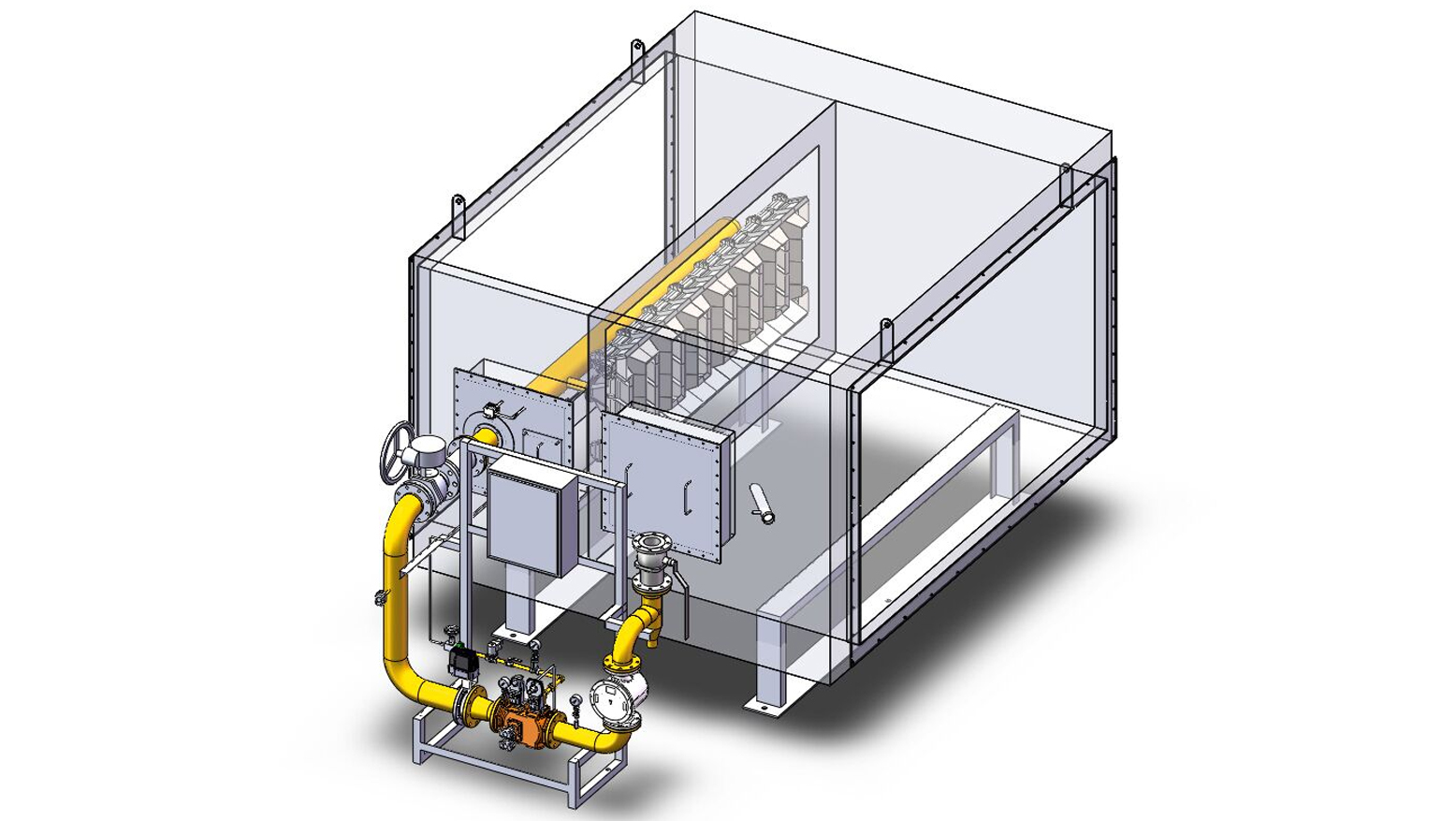

Recognizing the extreme sensitivity of lithium bicarbonate to impurities, J.Parker has implemented strict material control throughout the system design. All burner elements and key components are meticulously selected to be completely free of copper, iron, and zinc—effectively avoiding any potential contamination that could compromise the quality of the lithium battery raw material. To ensure safe and precise operation, the system is equipped with a custom-engineered gas train, integrated with isolation valves, strainers, flow meters, pressure transmitters, shut-off valves, and load control valves. This sophisticated control system enables real-time, accurate regulation of burner operation and process temperature, minimizing risks and ensuring consistent performance.

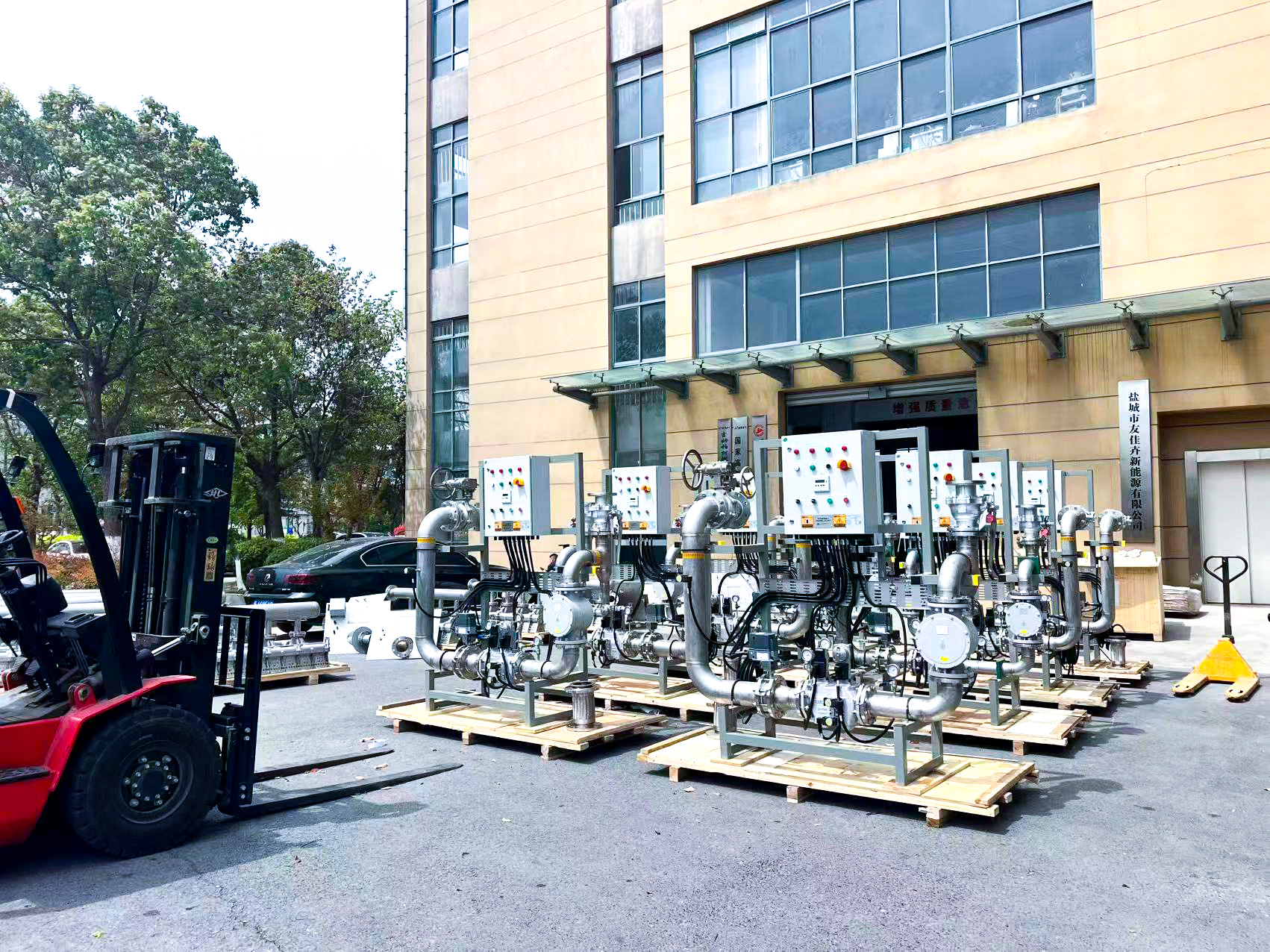

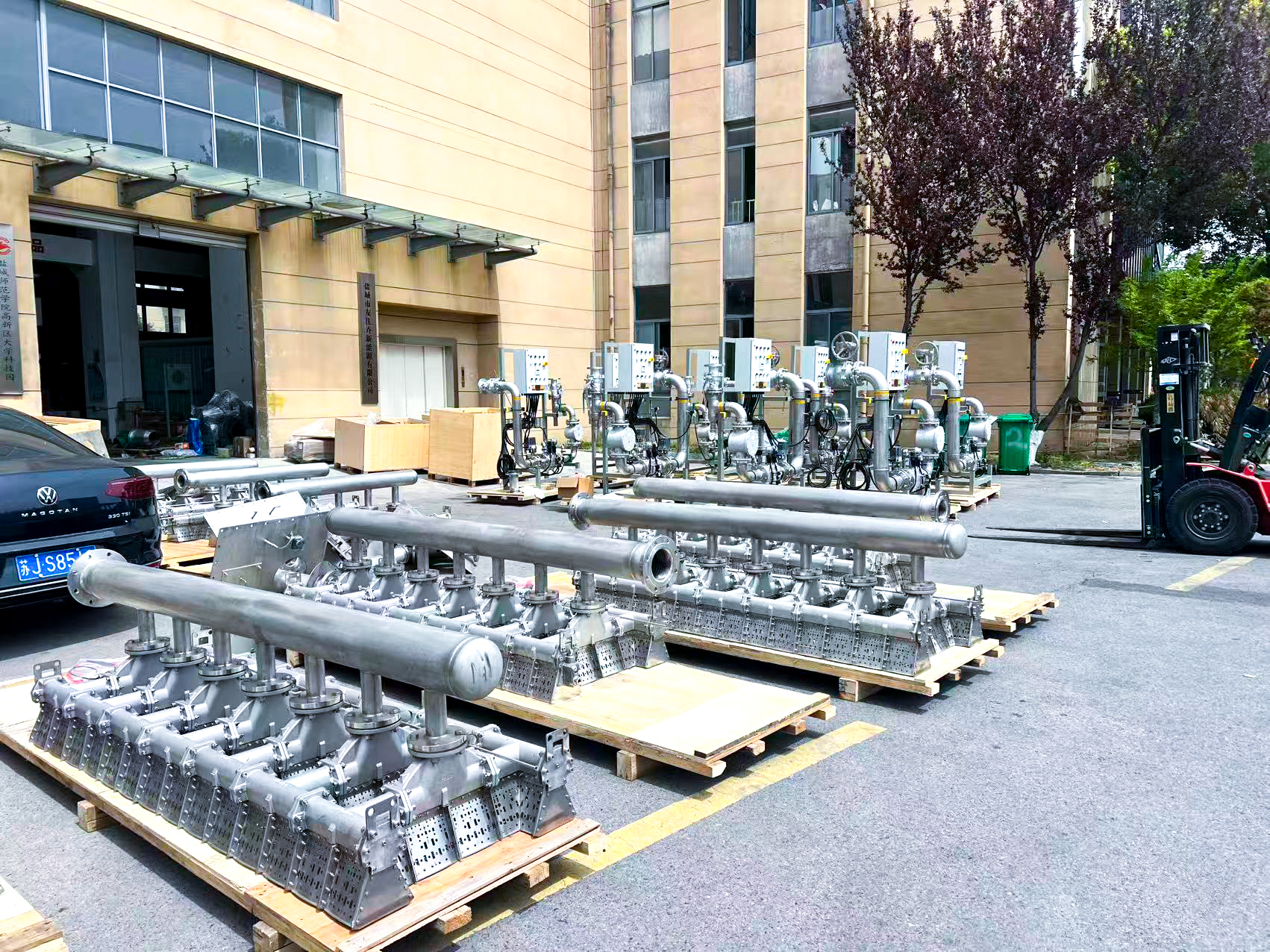

To streamline on-site installation and reduce downtime for our clients, the entire gas train is pre-assembled, painted, subjected to rigorous leakage testing, and pre-commissioned prior to shipment. This turnkey approach allows for quick on-site deployment, ensuring the system can be put into operation efficiently, saving valuable time and resources for our customers.

Key Specifications of the J.Parker Dual-Stage Heating Solution:

■ Industry Application: Lithium Batteries Raw Material Drying (Lithium Bicarbonate Spray Drying)

■ Burner Type: HLPB Duct Burner

■ Fuel Type: Natural Gas

■ Burner Capacity: 8139 kW (First Stage) & 12790 kW (Second Stage)

■ Process Temperature: 270/300℃ (Precise Temperature Control)

■ Turn Down Ratio: 20:1 (Ensures Stable Operation Under Variable Loads)

J.Parker’s dual-stage heating solution combines advanced technology, strict quality control, and user-centric design, providing a reliable, efficient, and safe drying solution for lithium battery raw material manufacturers. With our commitment to innovation and excellence, we continue to deliver customized heating solutions that meet the evolving needs of the lithium battery industry.
