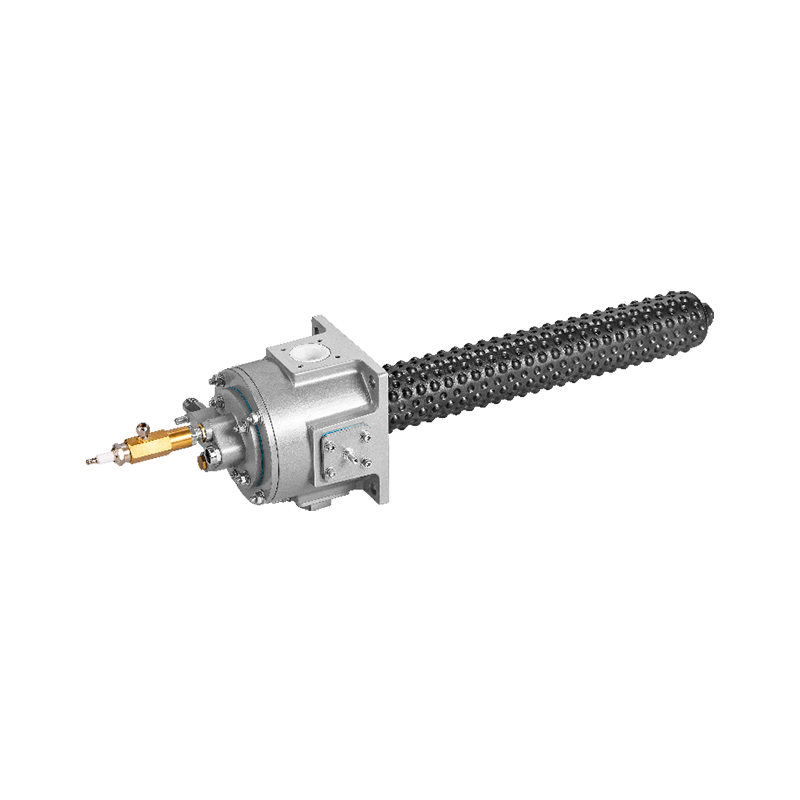

SLRC recuperative burner

SLRC burner is a self-recuperative burner, with integrated heat exchange in the burner to preheat the combustion air, and increase heat efficiency. Burner capacity covers from 15- 500 kW, with 7 burner models. The burner can be used for direct heating or radiant heating with a radiant tube, depending on the process needs, metal alloy, and SiC material for options. The burner uses stage mix methodology to lower the NOx emission

SLRC burner specifications



SLRC burner SLRC36 SLRC60 SLRC100 SLRC180 SLRC250 SLRC500
Max capacity (kW) 36 60 100 180 250 500
Comb air pressure (mbar) 45-65
Nature Gas pressure (mbar) 45-65
Fuel type NG, propane, COG, BFG and other low heat value gas mix
Typical control mode Pulse control
Pilot mode Direct ignition
Flame detection Flame rod or UV scanner

Max process temperature

in direct heating

1050℃ for metal flame tube

1150°C for alloy flame tube

1300℃ for SiC flame tube

Max process temperature

in radiant heating

950°C for metal flame tube

1030℃ for alloy flame tube

1250℃ for SiC flame tube
Typical applications

Roller heath furnace

Car type furnace

Continuous annealing furnace

Galvanize furnace

Mesh belt furnace
