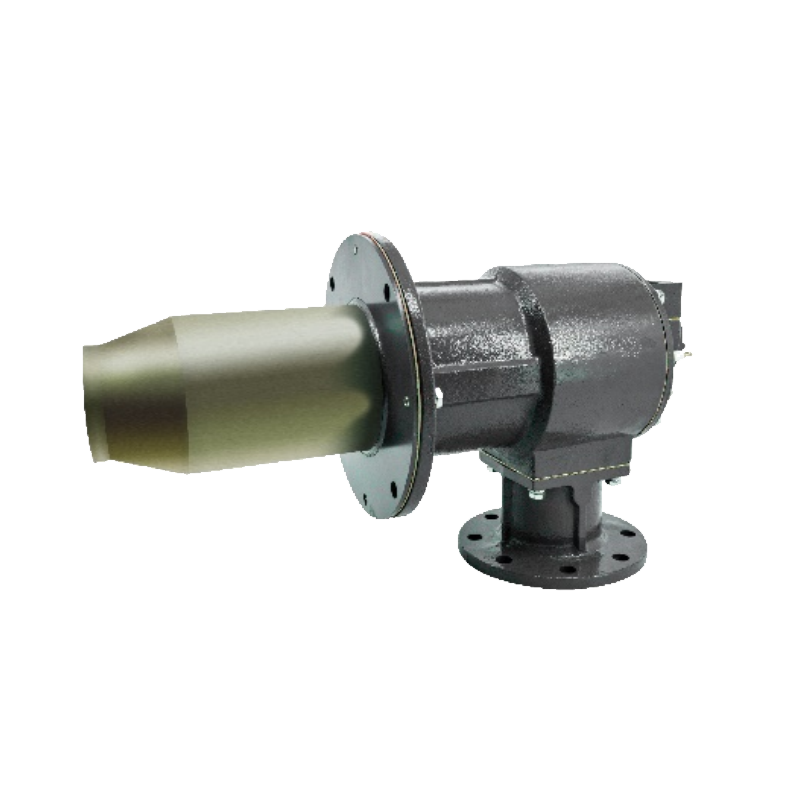

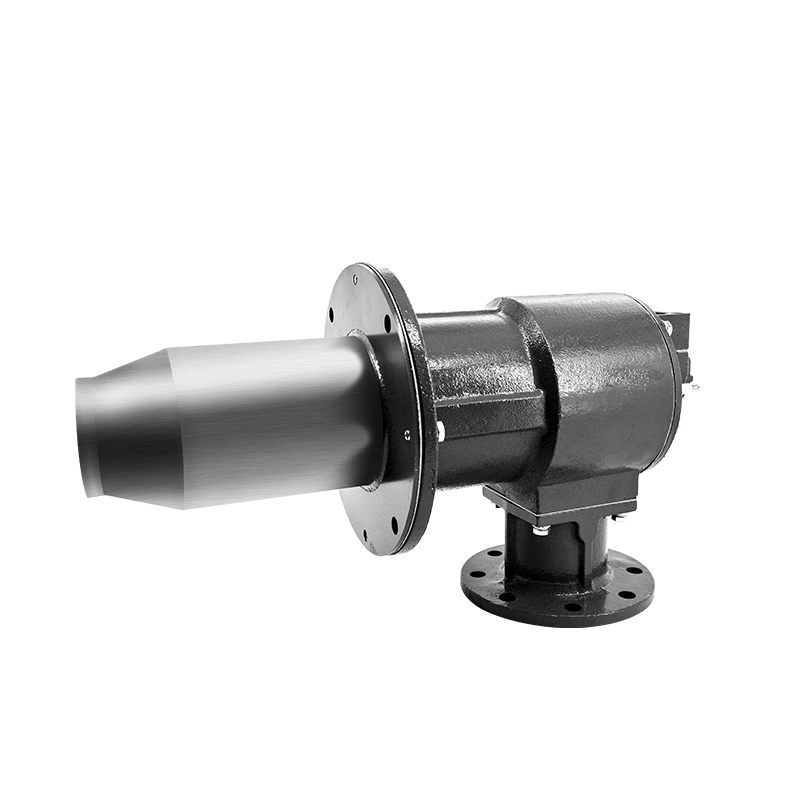

MPCI Gas Burner

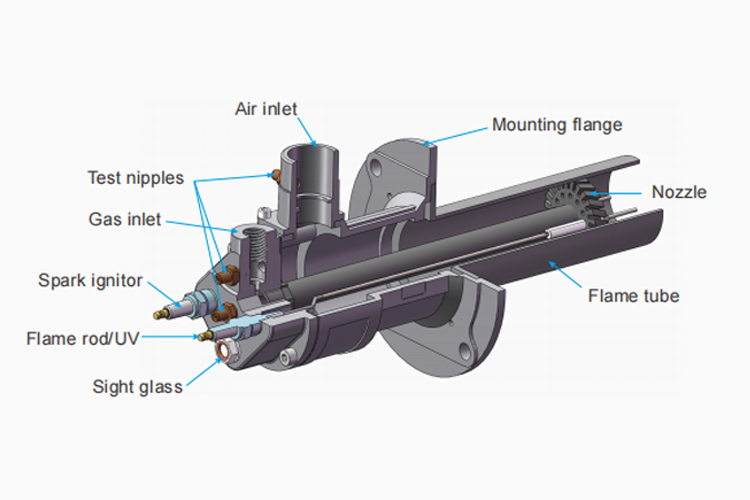

MPCl burner is a classical nozzle mix gas burner, force draft type, works for NG, LPG, COG, BFG, and other gas mix; firing capacity from 150 kW to 600 kW, cast iron body, MPCl can work with preheated combustion air up to 450 ℃. MPCI is flexible with different control modes, such as on/off, low/high/off, or proportional ratio controls. Equipped with different types of flame tubes, metal, SiC, or refractory for various kinds of furnaces, which brings short flame, long flame, or flat flame available. MPCl burner can be easily lit directly or with a separate pilot burner according to client demands, with an ionization or UV scanner option for flame detection. Gas, air orifice plates, and test nipples are furnished in the burner for easy settings.

MPCl burner is widely used in iron and steel treatment, ceramic industry, glass, and non-ferrous industries. Furthermore, for higher fire capacity up to 6000 kW, a welded cast steel body is applied; consult us for details with project demands.

Product Introduction

Technical Specifications


Project Describe
Burner Type MPCI nozzle mix gas burner
Fuel Options Natural Gas (NG), Liquefied Petroleum Gas (LPG), Coke Oven Gas (COG), Blast Furnace Gas (BFG), Custom Gas Mixtures
Capacity Range 150kW / 230kW / 320kW / 450kW / 630kW
Turndown Ratio 10:1
Ignition System Direct ignition (Pilot burner available as an option)
Control Modes On-Off / Low-High Fire / Proportional Control
Combustor Materials Silicon Carbide (SiC) / High-Temperature Metal / Refractory Lining
Flame Monitoring Ionization Probe / UV Flame Scanner
Max Air Preheat Temp 450°C
Process Temp Limits Metal Housing: <950°C
SiC Combustor: <1350°C
Refractory Lining: <1650°C
Surface Finish RAL 7043 (Standard Industrial Coating)


MPCI Nozzle-Mix Gas Burner Selection Guide


Model Max
capacity
(Kw)		 Flame type Flame
length
(cm)		 Gas
pressure
(mbar)		 Air
pressure
(mbar)		 Flame
velocity
(m/s)
MPCI_S150 120 Short 25...35 33 18 105
MPCI_M150 150 Medium/Long 45...60 22 16 100
MPCI_S230 200 Short 30...45 30 22 100
MPCI_M230 230 Medium/Long 50...65 27 17 90
MPCI_S320 300 Short 35...45 32 23 120
MPCI_M320 320 Medium/Long 55...80 30 20 105
MPCI_S450 400 Short  55...60 30 15 120
MPCI_M450 450 Medium/Long 70...120 30 20 100
MPCI_S630 630 Short  55...60 32 18 70
MPCI_M630 630 Medium/Long 70...120 33 25 60

[Notes]
■ Test data based on natural gas fuel, LHV 10 kW.h/Nm, 25 °C air temperature.
■ 20% higher capacity is possible with higher air and gas supply pressure.
■ Special frame length and velocity are possible for certain projects; please consult us.
■ Low heating value gas mix is possible; please consult us for further proposals.
