HLPB duct burner

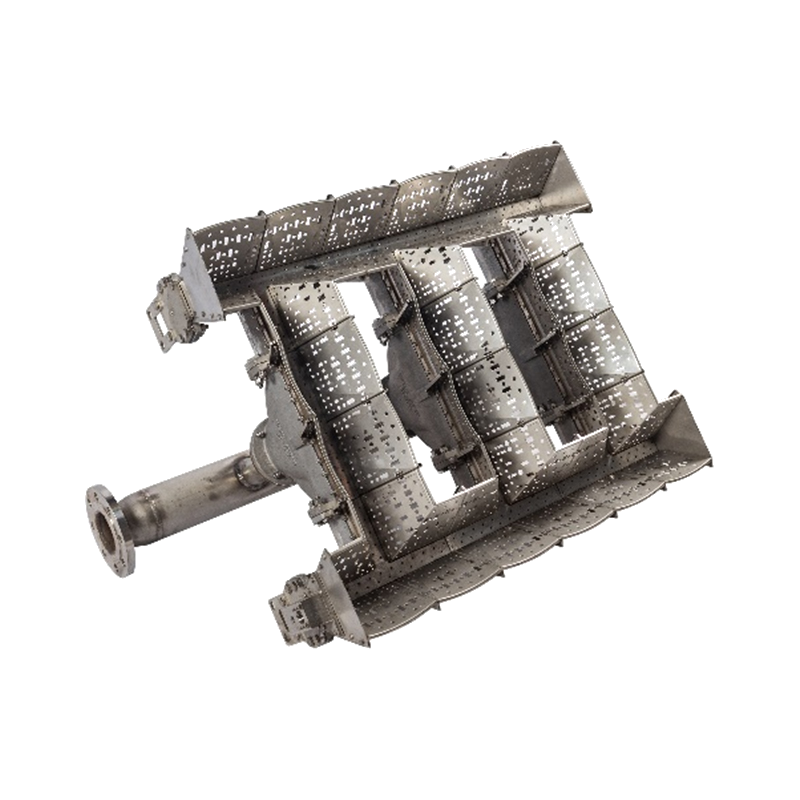

HLPB duct burner elements are designed for heating process air in motion, The burner elements are mounted inside the process air duct directly in the air stream being heated. The air stream passes across the burner and through the mixing plates and is used as combustion air, thanks to the proper profile plate setting. HLPB duct burner suitable for natural gas, propane, COG, and some other low heating value gas mixture. HPLB burner elements can work in high upstream temperature up to 540˚C, and low oxygen circumstances, max process air up to 850˚C

HLPB burner elements are modules designed can be easily cascaded to various layouts according to your specific heating requirement, Please consult us with your project-based demands.

Burner element


Burner elements

350E

700E

700B

1050T

1500SF

Max capacity

350

700

700

1050

1500

Min capacity

13

25

25

37

200

Turndown

28:1

28:1

28:1

28:1

7:1

Max flame length

About 2.2m, but heavily dependent on process air velocity, temp, and oxygen %

3.5----5m

Max downstream temp

850˚C HT version

500˚C LT version

950

Max recycles temp

540˚C HT version

300˚C LT version

600

Typical Burner Data



Burner Type HLPB_ LT HLPB_ HT HLPB_ SF
Max capacity per unit(kW) 700 700 1500
NG gas pressure(mbar) 70 70 1000
Flame length(m) 2 2 2.5-4.5
Pressure drop(mbar) 0.5-0.6 0.4-1.5
NOTE
1. Burner data is tested with natural gas at 15°C, with 10 kWh/Nm³, sg=0. 59
2. Max and min capacities are highly dependent on applications
3. Natural gas pressure at the burner inlet is tested with the maximum fire capacity, which can be different with different gas quality
4. Flame length is measured in highest capacity, and will be heavily affected by process air temp, O₂, and velocity

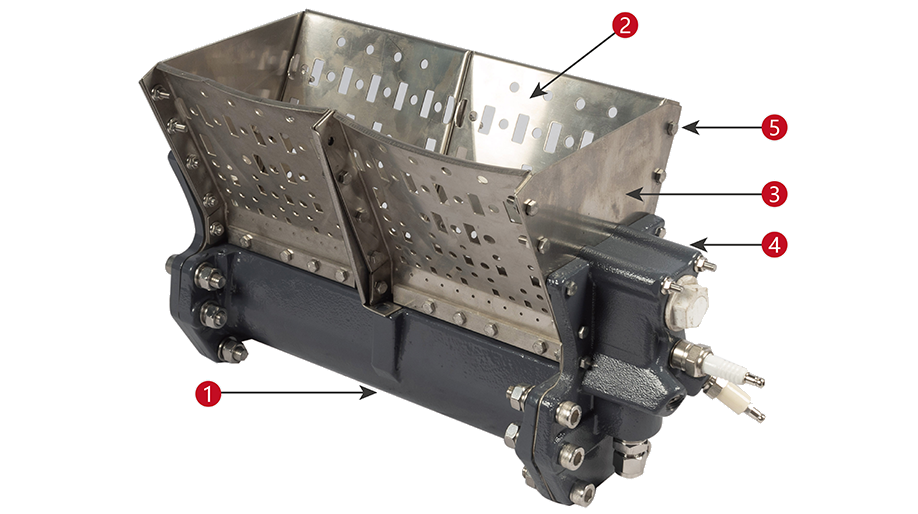

Construction material






Item Burner part Material
HLPB_ HT HLPB_ LT HLPB SF
1 Burner body Gray iron Aluminum SS304
2 Mixing plate SS310 SS304 Hastelloy X
3 End plate SS310 SS304 Hastelloy X
4 End plate SS304 Aluminum NA
5 Fasteners SS316 SS304 Hastelloy X
6 Main gas inlet plate SS304 Hastelloy X
7 Pilot plate SS304 Separate pilot bureau
