We’re proud to launch our specialized burner system for Regenerative Thermal Oxidizers (RTO) — engineered to deliver reliable waste gas incineration with unmatched efficiency and safety.

At its core, the system features a 465kW high-velocity gas burner, designed to rapidly heat the RTO to 850°C — the optimal temperature for oxidizing VOC-containing waste gas. Once heated, harmful VOCs are fully converted into harmless CO₂ and H₂O, which are then safely released into the atmosphere. The burner operates with automatic modulation to precisely maintain the 850°C process temperature, ensuring consistent pollutant destruction efficiency.

Powered by the Eclipse TJ-200 burner and paired with Siemens LMV36 controls, the system integrates safety interlocks and electronic ratio control technology. This precision ratio control minimizes excess air intake, boosting thermal efficiency while reducing fuel consumption. Its wide turndown range also ensures ultra-tight temperature deviation from setpoints, further optimizing energy savings.

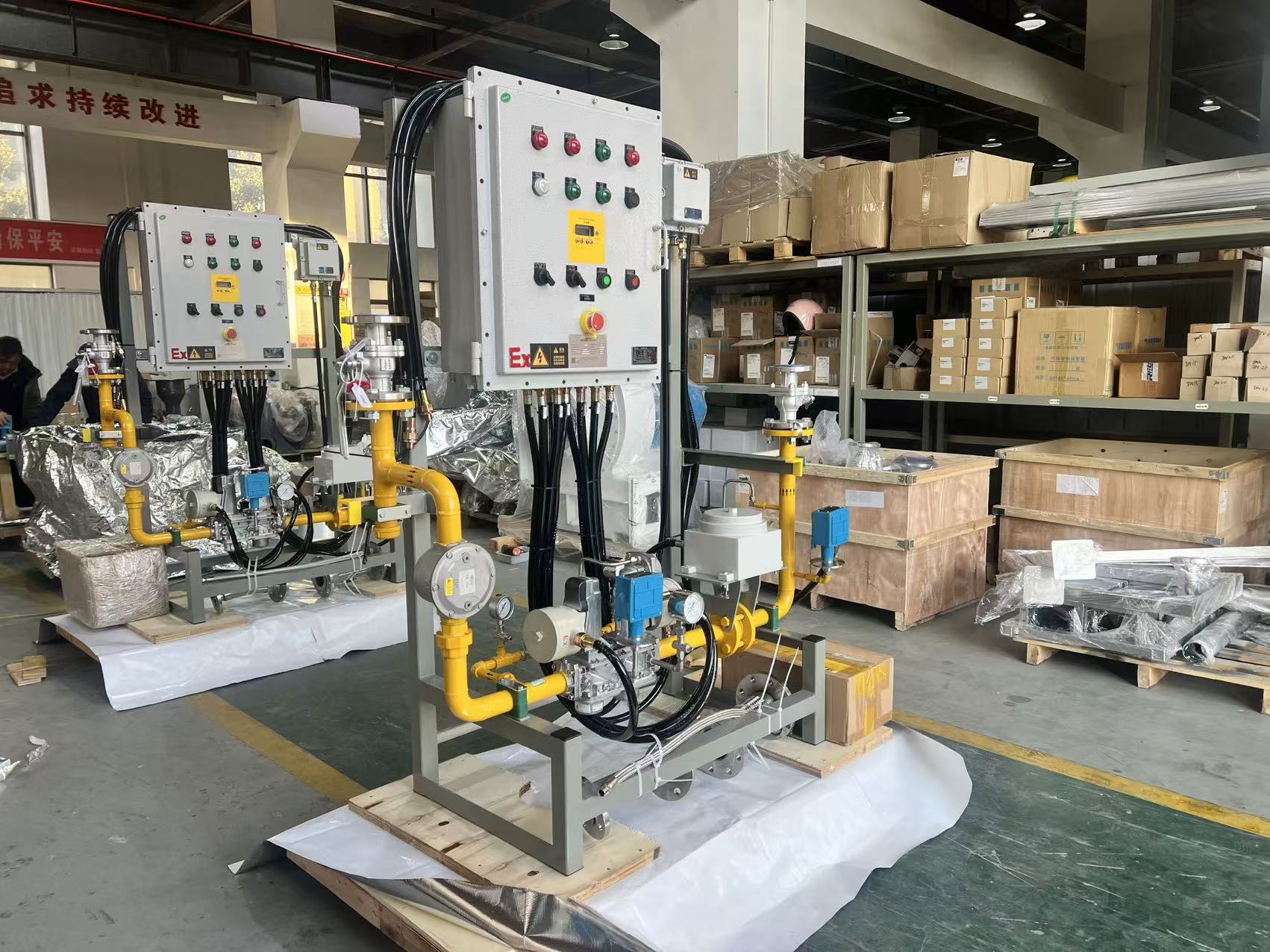

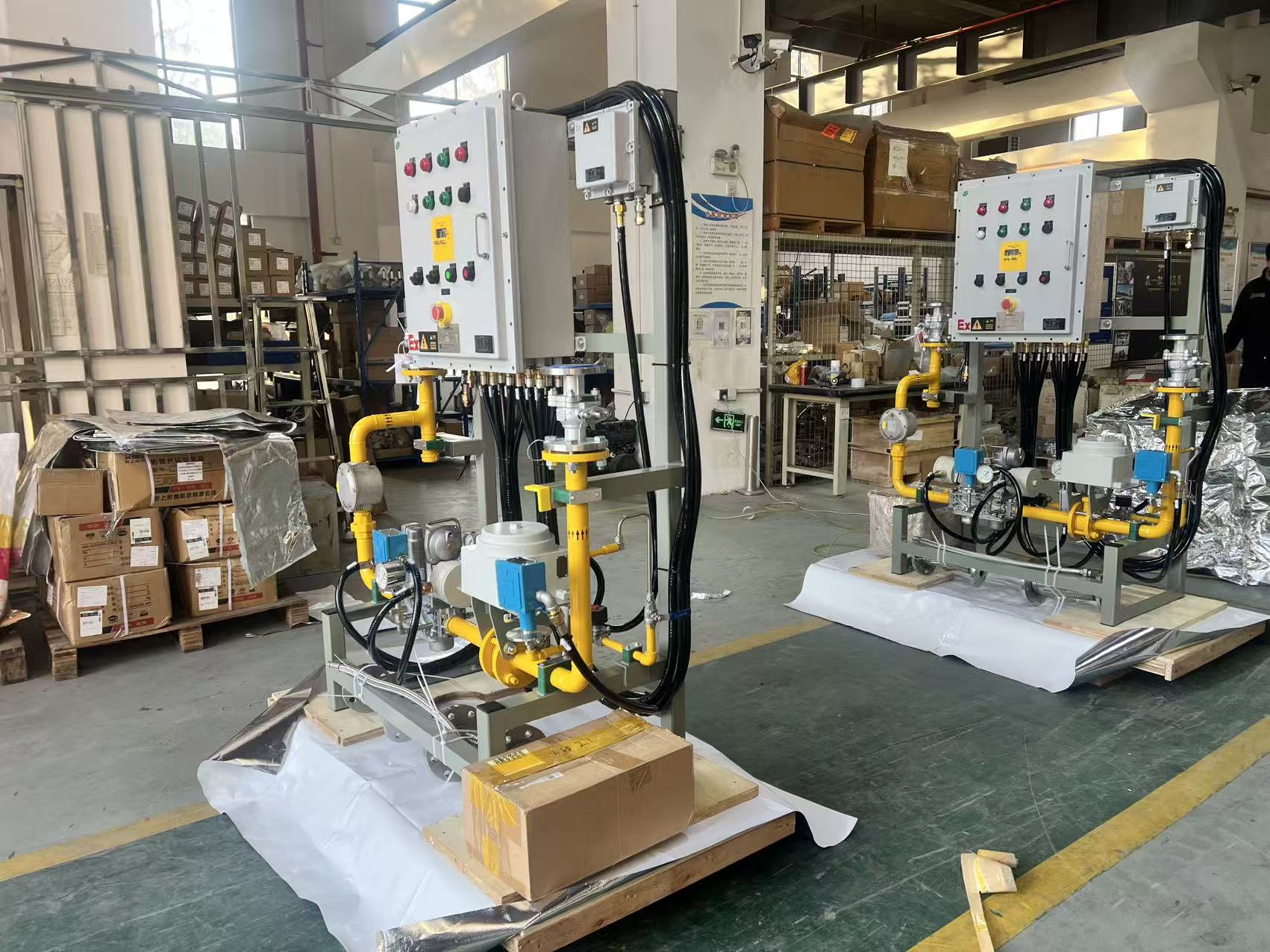

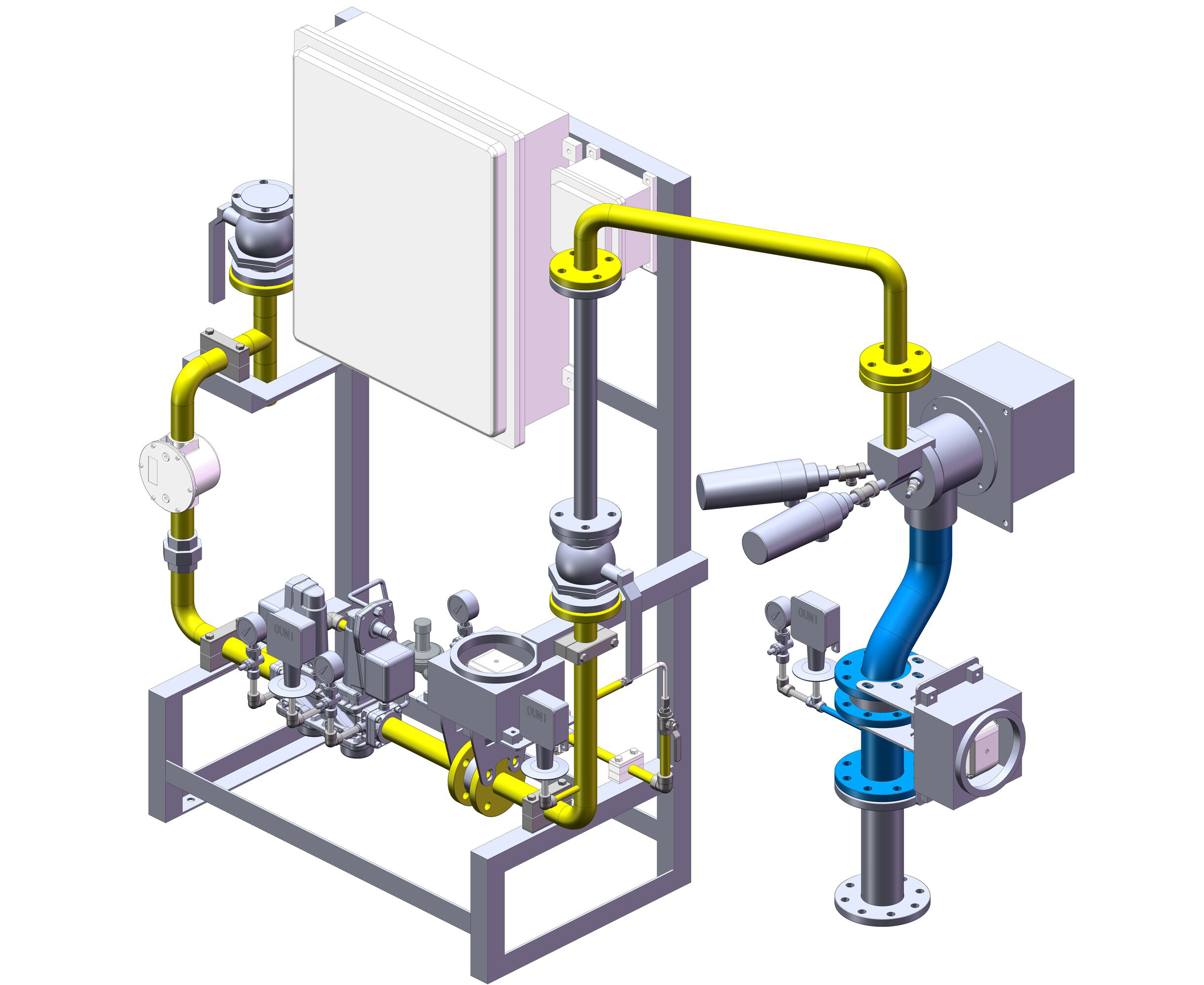

For maximum safety and reliability, the complete burner system includes:

• DN40 natural gas main train + dedicated pilot gas train
• BMS (Burner Management System) control cabinet
• UV flame scanner and ionization rod for real-time flame monitoring

All components are pre-assembled, painted, and subjected to strict leak testing and functional verification before shipment. Equipped with Exd-IIBT4 explosion-proof rated equipment, the system guarantees 100% operational safety even in hazardous environments.

Ideal for industrial waste gas treatment, this RTO burner solution balances environmental compliance, energy efficiency, and operational safety — helping businesses meet emission standards while reducing operational costs.

Ready for deployment, contact us to learn how it can elevate your waste gas treatment process!
